Enable Logging for firewalld

Enabling logging on firewall rules can be beneficial for tracking why a certain rule is not behaving as you intended.

Enabling logging is relatively straight forward.

  • Enable Firewall Logging
  • Check Logs
  • Disable Firewall Logging (Optional)

Enable Firewall Logging

Quickest way to enable logging is to run

sudo firewall-cmd --set-log-denied=all

This changes the options in the /etc/firewalld/firewalld.conf config file. Options include all, unicast, broadcast, multicast, and off

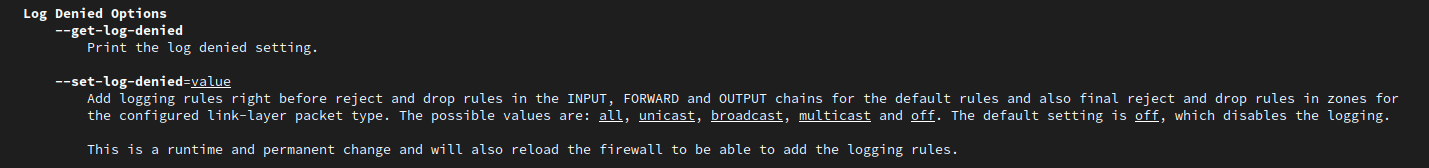

Enable Log option for firewalld

The command also reloads the firewall so manually restarting the firewall is necessary.

Checking Logs

You can use dmesg to view the failed attempts or you can follow the messages log and filter to just show the rejects

sudo tail -f /var/log/messages | grep -i REJECT

You can now try to access the server or run a test to trigger a log event. In my case I tried initiating a SSH connection.

Oct  1 16:32:10 localhost kernel: FINAL_REJECT: IN=eno1 OUT= MAC=f8:ab:98:12:fe:11:a1:ec:a6:00:67:3e:97:00 SRC=192.168.1.1 DST=192.168.88.2 LEN=60 TOS=0x08 PREC=0x40 TTL=59 ID=43080 DF PROTO=TCP SPT=38192 DPT=22 WINDOW=52240 RES=0x00 SYN URGP=0

Interesting bits are bolded. Our destination port it 22 “ssh” and our source address is 192.168.1.1. If I want this IP to access the server, I’ll need to add the 192.168.1.1 IP range in the allowed IP ranges.

Disable Logging (Optional)

After you have finished troubleshooting your problem, you may want to turn the logging feature off so you don’t fill up the logs with failed entries.

You can turn it off with

sudo firewall-cmd --set-log-denied=off

We can verify that logging is off by running

sudo firewall-cmd --get-log-denied

If the firewall logging option is off it will return “off”

The following site has some more information and alternative ways

https://www.cyberciti.biz/faq/enable-firewalld-logging-for-denied-packets-on-linux/

semanage Allow and Delete ports in CentOS

The commands are for CentOS, but should work on Fedora and RedHat.

If semanage is not installed refer to here.

You would typically use this along with the systems firewall to allow a port through.  Guide for firewalld and iptables.  If you change it in the firewall and fail to add/edit it in semanage you can potentially get weird behavior like sshd not wanting to start after changing the port.

Add port

semanage port -a -t ssh_port_t -p tcp 2222

The above command allows the sshd service to start, using port 2222.

List allowed ports

semanage port -l

You can use grep to filter the results

Example:

[admin@localhost ~]# semanage port -l | grep ssh
ssh_port_t tcp 2222, 22
[admin@localhost ~]#

Delete port

semanage port -d -p tcp 2222

Other examples

Allow SNMP

semanage port -a -t snmp_port_t -p udp 161



Allow KDE Connect through firewall

Firewalld

sudo firewall-cmd --zone=public --permanent --add-port=1714-1764/tcp
sudo firewall-cmd --zone=public --permanent --add-port=1714-1764/udp
sudo systemctl restart firewalld.service

UFW firewall

sudo ufw allow 1714:1764/udp
sudo ufw allow 1714:1764/tcp
sudo ufw reload

More information https://community.kde.org/KDEConnect

How to Allow a Port Through Firewalld

Note: If you have SELinux enabled you’ll need to allow the port in semanage.

Basic syntax

 firewall-cmd --zone=public --add-port=(port number)/(protocal)

So the command to allow port 80 through the firewall would be

firewall-cmd --zone=public --add-port=http/tcp
or
firewall-cmd --zone=public --add-port=80/tcp

The above command only works for the running instance of firewalld.  If you want to add the port permanetely you need to run the above command and then run it again with “–permanent” added to the end of the command.

example:

firewall-cmd --zone=public --add-port=http/tcp
firewall-cmd --zone=public --add-port=http/tcp --permanent
